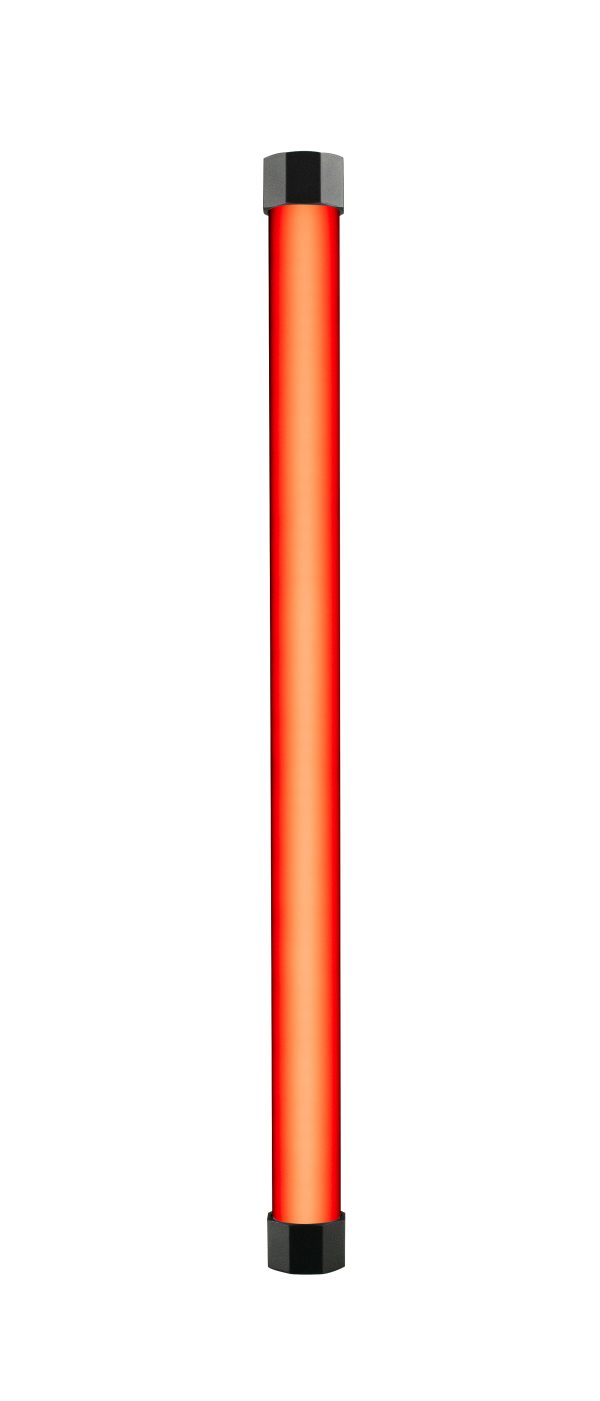

Nanlite PavoTube II 15XR RGBWW LED Pixel Tube 4 Kit 15-2028-4KIT
£1,194.00£995.00 inc VAT

Free delivery: Gets to you in 3-5 days
The Nanlite PavoTube II 15XR is an RGBWW LED pixel tube that refines the design and features of the PavoTube II X. Now featuring CRMX Lumen Radio wireless DMX built-in, pixel-based special effects, brighter output, more uniform diffusion, robust metal housings, DMX, wireless 2.4G, and Bluetooth control with the NANLINK Mobile app for iOS and Android, and CRMX in the XR models. Also included carry bag and accessories.
Wireless control with built-in LumenRadio wireless receivers using a separately available transmitter. The XR tubes can hop frequencies to find the strongest possible transmission from point to point, and they have a wireless mesh system that allows for a robust working environment for all fixtures. CRMX provides the speed and reliability of DMX control with the massive advantage of being wireless.

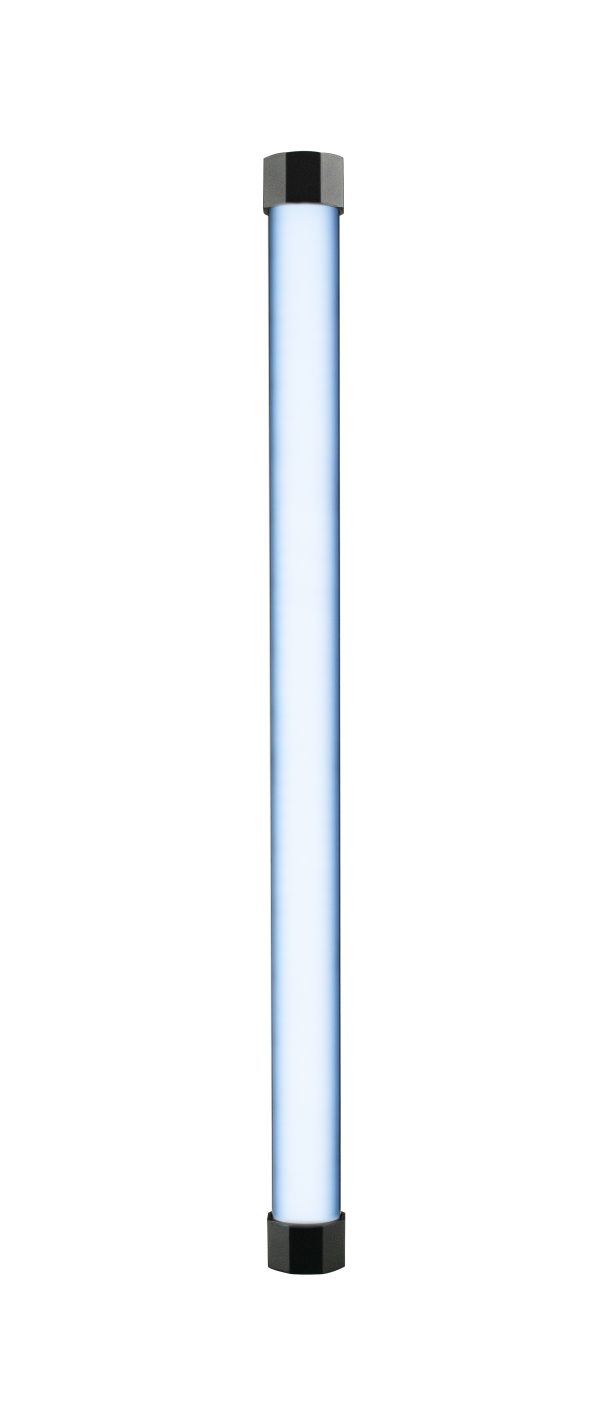

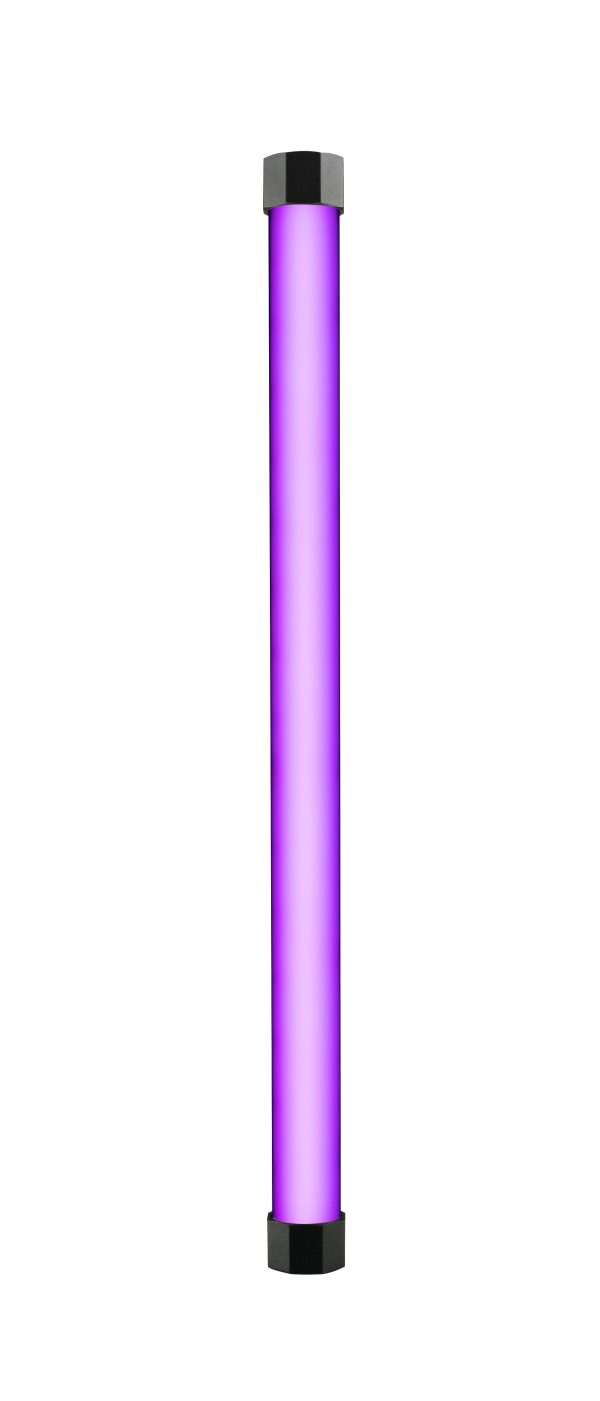

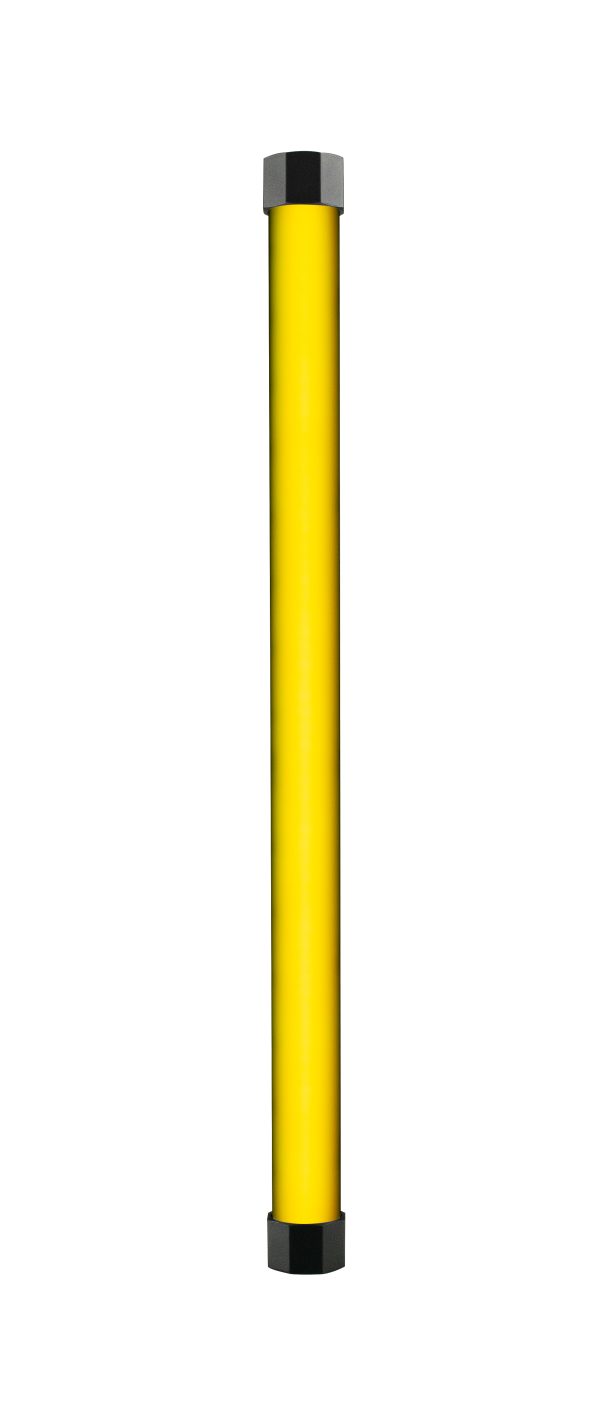

With an expanded and more precise color temperature range of 2700K–12000K with green to magenta adjustment, an average CRI of 97, an average TLCI of 98, plus full-spectrum RGB hue and saturation control, the PavoTube II XR packs studio-quality lighting into a hardy, go-anywhere package.
Nanlite drew on the feedback from PavoTube owners across the world to evolve their LED tube design. Enhancements include brighter output, an upgraded control panel with locking buttons, DMX compatibility, and enhanced app control. They also feature a more uniform internal diffusion that obscures individual LEDs creating a seamless, glowing shaft of light.
Powered by internal Li-ion batteries, the PavoTube II 15XR can run for 1 hour and 26 minutes, the 30XR can run for 1 hour and 36 minutes, and the 60XR can run for 1 hour 57 minutes at full brightness completely untethered. Full battery recharge is achieved in 3 hours with the 15XR, 3.5 hours with the 30XR, and 5.5 hours with the 60XR using the included AC adapters, which can also fully power the PavoTube II XR during longer shoots. Power adapters are included for every light, and they are available in 1, 2, 4, and 8 kits.

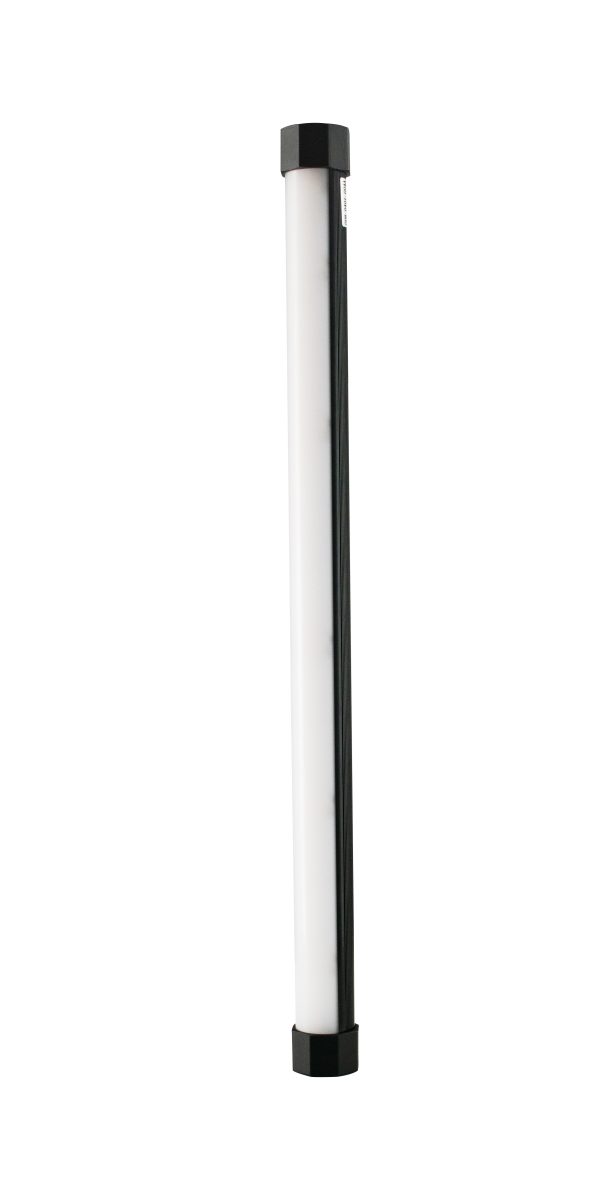

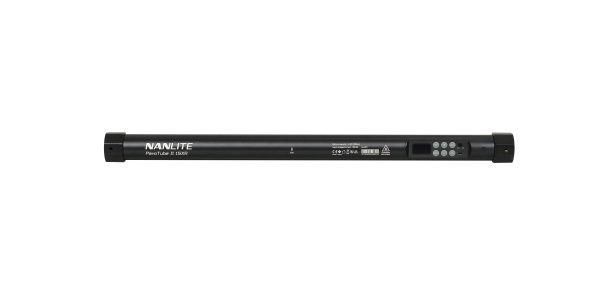

With smaller, more visually appealing end caps and durable metal construction throughout, the PavoTube II XR series is built for life on set — both on and off camera. Each tube has three 1/4-20 mounting sockets, one on the bottom of a cap and two on the back to facilitate hanging with included metal eyebolt accessories.
Watch the video
Features

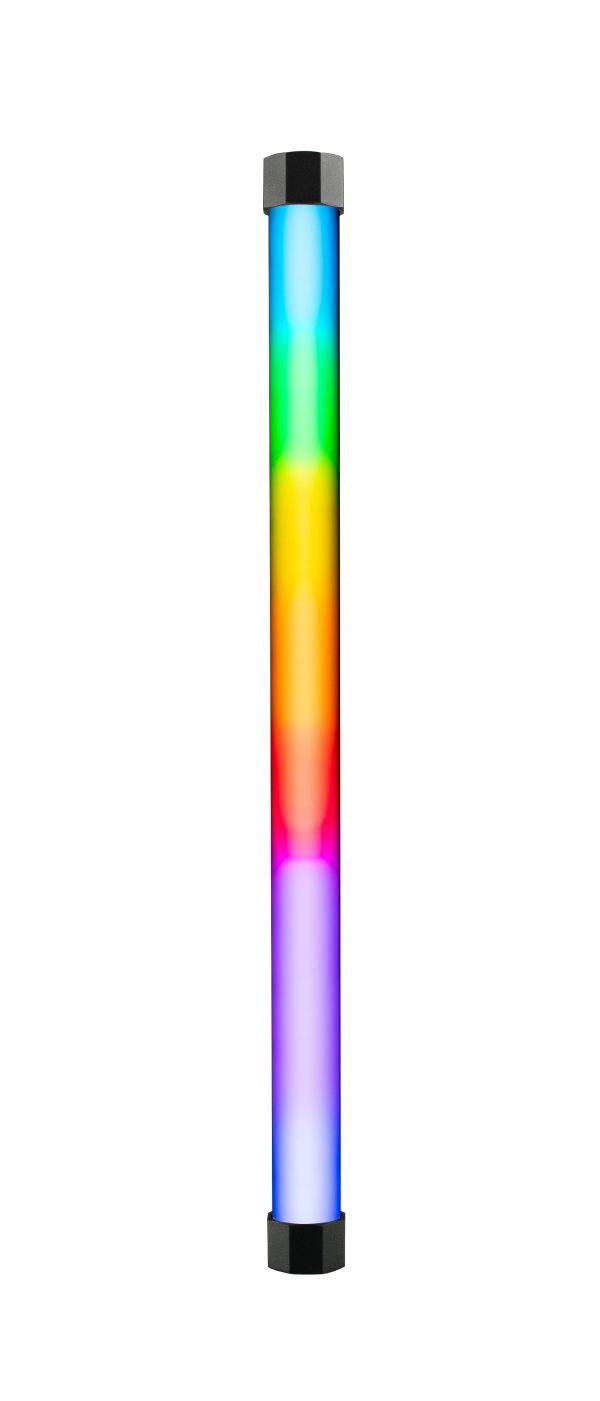

Pixel Control
To help creators explore more possibilities and create a naturally floating scene,
PavoTube II X/XR adds pixel control to the lighting effects.
A variety of practical simulation effects adds more options to your creativity.
Each pixel effect can be freely defined and transformed,
with multiple parameters to achieve accurate and wonderful effects.
Convenient Operation
PavoTube II X/XR follow the simple and intuitive operating interface on-board,
and cover multiple control options including NANLINK APP intelligent wireless control
and wired DMX/RDM control.
PavoTube Il XR provides the control method of LumenRadio CRMX,
making it easy to work with various fixtures for lighting.
Power
PavoTube ll X/XR have built-in batteries that allows you to walk with power,
without being tied down by cables. Wherever you go, the lighting goes on.
Standard 1/4-20 Mount Receiver
A total of three 1/4-20 mount receivers exist on the back and both ends of PavoTube ll X/XR,
With a diverse but common and customized range of accessories
that satisfying different shooting requirements and applications.
Specification
| CRI: | Average 97 |
| TLCI: | Average 98 |
| Colour Temperature (Kelvin): | 2700K-12000K |
| Lumen Output 3200K: | 1187 |
| Lumen Output 5600K: | 1278 |
| Dimming: | 0-100% |
| DMX Control: | Yes |
| Compatible Wi-Fi Adapter: | Nanlink WS-TB-1 Transmitter box |
| Compatible Remote: | WS-RC-C2 remote control |
| Wireless Control Type: | 2.4GHz, Bluetooth, DMX/RDM |
| Frequency: | 2.4Ghz |
| Accessory Port(s): | No |
| Depth Rating: | IP 20 |
| Mount: | T12, 3x 1/4 20″, Magnets |
| Operating Temperature: | ta45℃ |
| Cooling System: | No |
| Power Source: | DC15V/2A |
| Max Power Consumption: | 18W |
| Electrical Load Capacity: | 32.5W |
| Amp-Hours: | 2200mAh |
| Includes Rechargeable Battery: | Yes |
| Number of Battery Cells: | 4 |
| Battery Capacity (Wh): | 32.6 |
| Battery Chemistry: | Li-Ion |
| Compatible D-Tap Adapter: | Nanlite CB-DT-DC D-Tap cable with DC Socket |
| Battery Included: | Yes |
| Charger: | AC Adapter |
| Battery Maximum Output Voltage: | 14.8V |
| Battery Required: | Yes |
| Charge Time to Full (Hours): | about 3 hours |
| Runtime @ 100% Brightness (Hours): | 1h 26 mins |
| Runtime @ 50% Brightness (Hours): | 2h 41 mins |
| Runtime @ 10% Brightness (Hours): | 9 h 40 mins |
| ‘Product Diameter (cm): | 4.3 |
| ‘Product Diameter (in): | 1.7 |

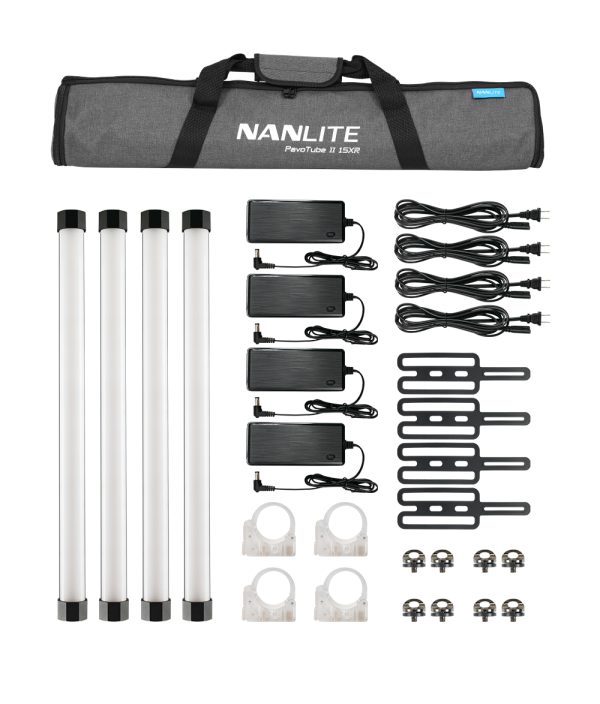

In the box
PavoTube II 15X × 4

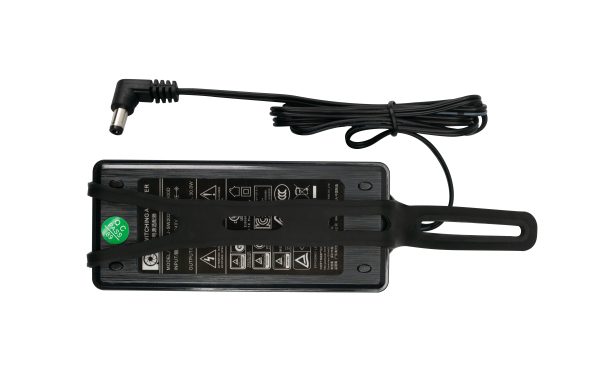

Power Adapter × 4
Power Adapter Rubber Strap × 4
Power Cable 3M × 4, Clip × 4

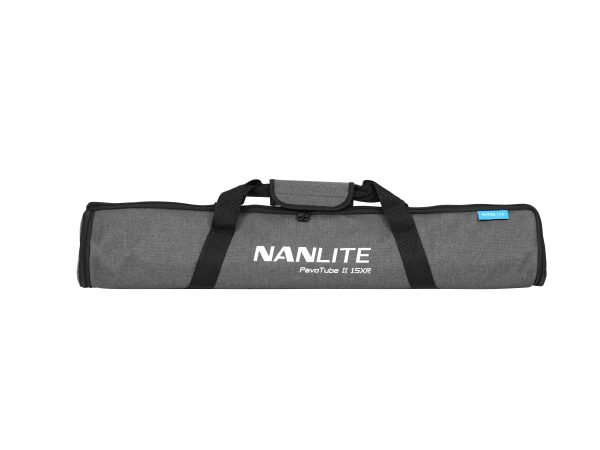

Eyebolt × 8, Carrying Bag × 1
User Manual × 1
